8 Inch C-plane(0001) Sapphire Wafers

8 Inch C-plane(0001) Sapphire Wafers

The 8-inch sapphire wafers can enable chip makers to roll out more productivity, which will help them drive down costs dramatically.

CRYSCORE is qualified to supply 8-inch epi-ready sapphire wafers. The common thickness is 1300 μm and 1500 μm.

Generally, this series of polished sapphire wafer has a notch instead of a major flat, but flat with custom length is also available. Our sapphire wafers are cleaned in class 100 cleanroom by ultrapure water with quality above 18MΩ *cm, and then packed in clean cassettes.

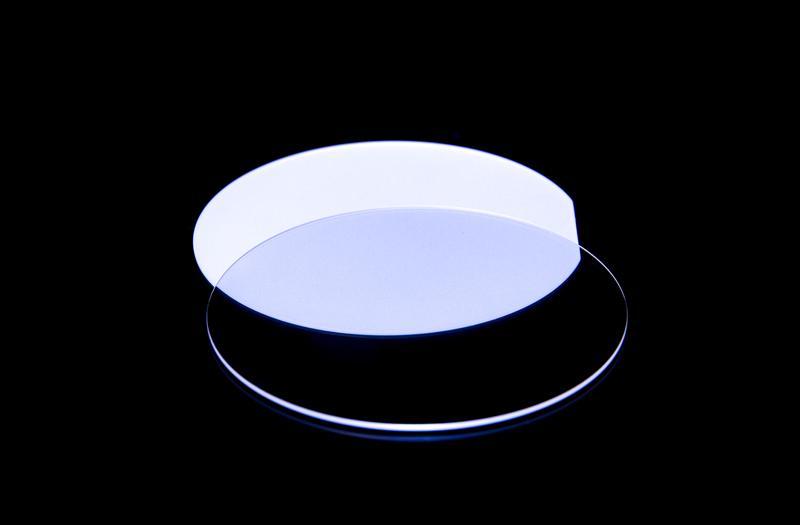

8 Inch C-plane(0001) Sapphire Wafers 8 Inch C-plane(0001) Sapphire Wafers
Specifications of 8 Inch C-plane(0001) Sapphire Wafers

Item

8-inch C-plane(0001) 1300μm Sapphire Wafers

Crystal Materials

99,999%, High Purity, Monocrystalline Al2O3

Grade

Prime, Epi-Ready

Surface Orientation

C-plane(0001)

C-plane off-angle toward M-axis 0.2 +/- 0.1°

Diameter

200.0 mm +/- 0.2 mm

Thickness

1300 μm +/- 25 μm

Single Side Polished

Front Surface

Epi-polished, Ra < 0.2 nm (by AFM)

(SSP)

Back Surface

Fine ground, Ra = 0.8 μm to 1.2 μm

Double Side Polished

Front Surface

Epi-polished, Ra < 0.2 nm (by AFM)

(DSP)

Back Surface

Epi-polished, Ra < 0.2 nm (by AFM)

TTV

< 30 μm

BOW

< 30 μm

WARP

< 30 μm

Cleaning / Packaging

Class 100 cleanroom cleaning and vacuum packaging,

25 pieces in one cassette packaging or single piece packaging.

Note: Custom sapphire wafers with any orientation and any thickness can be provided.
